Buffer
Rubber to metal bonded buffers are among the key energy-absorbing and damping components in railway vehicle construction. They combine elastomeric materials with robust metal structures to dampen impacts, absorb energy in a controlled manner and protect vehicle components.
Area of application
Buffers made of rubber and metal or rubber-plastic composites are widely used in railway vehicle manufacturing and serve functions related to safety and comfort. On freight and passenger cars as well as locomotives, they absorb impact forces and compensate for longitudinal movements during operation. In switching operations, they are used as switching and end buffers, where they absorb energy at low to moderate speeds and protect the frame and safety-critical components from damage. In addition, rubber-metal buffers are key components of traction and coupling devices such as in automatic coupling systems or drawbars. They dampen forces during starting, braking and coupling, thereby increasing operational safety and the service life of the assemblies. They also limit movement in end stops on streetcars, subways or special-purpose vehicles, protect against overload and contribute to smooth operation. Thanks to the combination of elastic damping and robust metal mounting, they are suitable for numerous applications in the railway vehicle sector.
Technical details
Rubber-metal buffers consist of elastomeric materials that are firmly bonded to metal parts such as steel housings or flanges. The vulcanized bond creates a force-locking system that absorbs shocks through the elastic deformation of the rubber while simultaneously damping them via the material’s natural hysteresis. The spring and damping characteristics can be specifically tailored through material hardness, geometry and design, enabling the creation of buffers with different force-displacement characteristics. This combination makes rubber-metal buffers robust and maintenance-free energy absorbers for a wide range of applications in railway vehicle manufacturing.
Characteristics
Rubber-metal buffers are characterized by a number of advantageous properties that make them particularly well-suited for use in railway vehicles. They offer high inherent damping, which allows impacts to be absorbed smoothly and provides long-term protection for both vehicles and components. Due to their progressive spring characteristic curve, they initially respond with flexibility and become stiffer as the load increases, enabling controlled energy absorption. At the same time, their simple design makes them maintenance-free and resistant to dirt, moisture and mechanical stress. The combination of elastomer and protected metal makes them corrosion-resistant and durable, although the actual service life depends heavily on environmental conditions and material selection. Overall, rubber-metal buffers offer a reliable, compact and cost-effective solution for shock and energy absorption applications in the railway sector.
Components

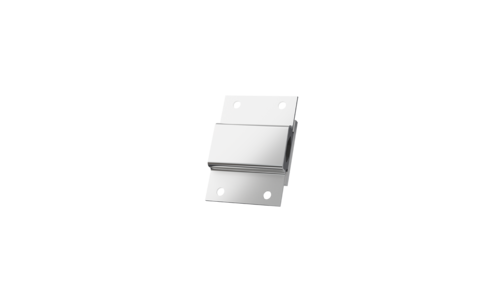

Vertical buffer
Rubber-metal vertical buffers are key components of the primary and secondary suspension systems in railway vehicles and serve to control and limit vertical relative movements between the bogie and the car body. They are used in virtually all types of vehicles - from high-speed trains to regional and commuter trains, freight cars and trams - and play a key role in improving ride comfort, reducing shock loads and ensuring long-term structural integrity. Technically, vertical buffers consist of robust metal-rubber composites in which specially developed elastomers are vulcanized between metal parts. This design enables a defined spring characteristic curve with elastic flexibility and progressive limitation of large vertical deflections. The elastomers used - such as natural rubber or synthetic blends - are designed for high dynamic loads, effective vibration absorption and a long service life, they are suitable for a wide range of temperatures as well as high resistance to aging and weathering. Through the combination of elasticity, damping and structural robustness, rubber-metal vertical buffers reduce vibrations and noise, protect vehicle components from fatigue and improve ride comfort. Their low-maintenance design, compact construction, and the ability to specifically tailor the material, geometry and preload make them an indispensable component of bogies and suspension systems.
Transverse | Lateral | Horizontal Buffer
Transverse, lateral, and horizontal buffers are key components of railway vehicle running gear technology and are used to provide controlled guidance and damping of lateral relative movements between the bogie and the car body. They are used in nearly all vehicle categories - from high-speed trains to regional and commuter railway vehicles, as well as freight cars and trams. In these applications, they enhance ride comfort, smoothness and operational safety by reducing vibrations, absorbing shock loads, and improving dynamic stability. Technically, these are mostly rubber-metal components in which specially developed elastomers - such as natural rubber or synthetic blends - are vulcanized between metal parts. This design enables a defined, nonlinear spring characteristic curve with elastic flexibility and progressive limitation of large deflections. At the same time, the buffers exhibit high energy absorption capacity and effectively dampen dynamic loads. Depending on their design, they can absorb transverse, longitudinal, and in some cases vertical forces, they are engineered for a wide temperature range as well as high requirements for resistance to aging and weathering. Through the combination of elasticity, damping and robustness, transverse/lateral/horizontal buffers improve ride comfort, protect vehicle components from material fatigue, reduce noise emissions and operate virtually maintenance-free over long service life spans. Their compact design and the ability to specifically tailor the material, geometry and preload make them an indispensable component of bogie and suspension systems.
Longitudinal Buffer
The longitudinal force-absorbing buffer in the pivot bearing of a bogie plays a key role in ensuring safe and smooth power transmission between the car body and the bogie. As an elastic element, it absorbs the longitudinal forces acting in the direction of the ride, which arise in particular during braking, acceleration or under varying load conditions. Thanks to its elastic design - often consisting of spring or elastomer elements - these forces are transmitted in a damped manner, effectively preventing harsh shocks, impacts, and structural stress spikes. During operation, the longitudinal buffer ensures that the car body can move in a controlled manner in the longitudinal direction relative to the bogie without causing abrupt movements or material stress. As a result, it not only extends the service life of the pivot bearing, bogie frame and car body, but also contributes significantly to a smooth ride and enhanced passenger comfort. In railway vehicle manufacturing, the longitudinal compensation buffer is therefore an indispensable element for sustainably improving safety, reliability and ease of maintenance.
