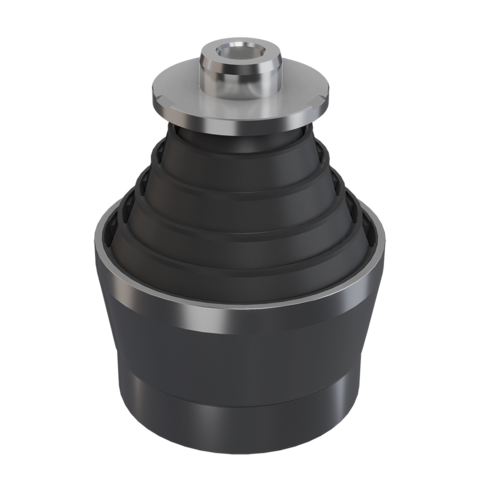

Conical Primary Spring
The conical primary spring is a key element and the centerpiece of numerous primary spring systems in bogies. It provides elastic decoupling of the wheel set from the bogie frame and significantly improves ride comfort, safety and efficiency in rail transport. High-quality materials and precise manufacturing of the conical spring ensure durability and reliability.
Area of application
The conical primary spring can be used in virtually all types of railway vehicle - from streetcars and subway trains to long-distance trains. It is indispensable for the load-bearing primary suspension in the bogie, particularly where high static and dynamic loads occur, compact installation space is required and a progressive spring characteristic curve is needed. This well-established component plays a key role in the bogie’s primary suspension system, ensuring excellent dynamic performance and a high level of safety.
Technical details
The elastic rubber-metal conical primary spring consists of several coordinated components that together form a robust and high-performance spring unit. A conical metal base body made of steel or cast metal along with an internal conical core ensures secure force absorption, precise guidance and protection of the rubber element. Spacer plates enable the specific design of the spring characteristic curve. The elastomer layer in between bears the operating loads and its hardness can be adapted to the specific application. The rubber element simultaneously provides elastic spring action, effective damping, compensation for tolerances and a significant reduction in vibrations and noise. The vulcanized bond between the rubber and metal creates a high-strength composite that reliably transmits compressive, shear and torsional forces. Optionally integrated stops or guide elements stabilize the system under extreme load conditions and limit the permissible spring rate.
Characteristics
The progressive spring characteristics allow for optimal adaptation to varying operating conditions in rail transport, thereby ensuring reliable dynamic performance. High-quality materials combined with precise manufacturing processes ensure a long service life and operational reliability. Thanks to their compact design, the conical springs can be used even in confined installation spaces while still absorbing high forces. Efficient force transmission significantly reduces wear while improving vehicle dynamics. The combination of suspension and damping ensures stability and a smooth ride. This is essential for the reliable and comfortable operation of railway vehicles.
