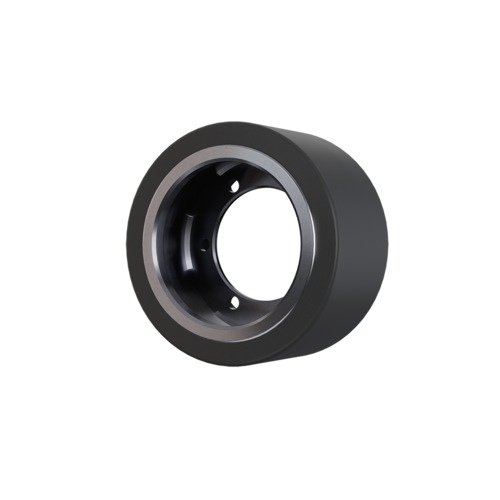

Support Roller
Rubber and metal support rollers are used in defense and military technology as components of drive systems to guide and support the track in the upper run. The metal core ensures high structural strength while the rubberized running surface reduces noise, vibration and wear. They contribute to stable track guidance, smooth operation and an extended service life for the undercarriage of tracked vehicles.
Area of application
Rubber and metal support rollers are used in defense and military technology above the track assembly, specifically along the upper vehicle hull in what is known as the upper run of the track. They are mounted where the returning track, after being redirected by the idler wheel, is guided forward again toward the drive wheel. Their function is to prevent the track from sagging, to hold it securely in position and to ensure smooth, quiet track operation. They are used on battle tanks, infantry fighting vehicles, transport vehicles, engineer vehicles and recovery vehicles - particularly those with long track runs and heavy vehicle weights - to reduce wear, noise and dynamic loads on the undercarriage.
Technical details
Support rollers typically consist of a high-strength steel or cast iron core with an integrated axle and bearing assembly that absorbs the mechanical loads of the upper track. The rubber-coated running ring is usually vulcanized or designed as a replaceable ring and serves to reduce noise, impact and wear on the returning track. Inside, heavy-duty slide or roller bearings with multi-stage sealing systems are used to reliably keep out dirt, mud and water. The entire assembly is designed for long-term durability, smooth track operation and reliable performance under the extreme environmental and operational conditions encountered in defense and military engineering.
Characteristics
Rubber and metal support rollers are characterized by their ability to reliably guide and support the returning track without transmitting any drive forces themselves. They provide excellent noise and vibration damping, which contributes to smooth upper track operation and a reduced acoustic signature. The rubber-coated raceway minimizes wear on the track and the roller, while the metal core permanently absorbs high structural loads. As a result, support rollers enhance operational safety, extend the service life of the undercarriage and improve the operational reliability of tracked vehicles in defense and military applications.
