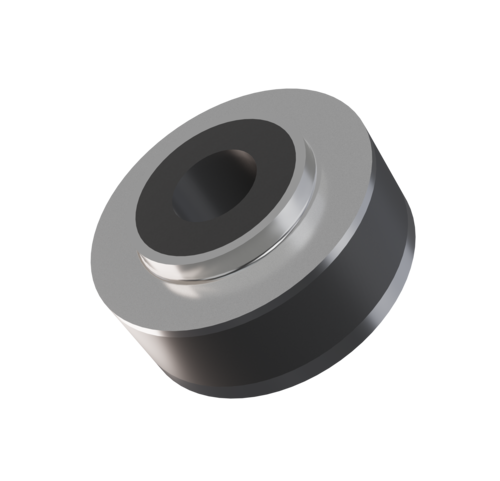

Ring Element
Rubber-and-metal ring elements are elastic damping and mounting components used in various applications in commercial vehicles to reliably reduce shocks, vibrations and dynamic loads. They consist of a ring-shaped rubber body that is firmly bonded to metal elements. This combination results in a component that both dampens vibrations and can safely absorb and transmit high forces.
Area of application
Rubber and metal ring elements are used in commercial vehicles wherever elastic damping, force absorption and motion limitation are required. They are primarily used in the suspension system to dampen vertical and lateral movements, support spring travel and protect axle components from peak loads. In coupling and trailer systems, they provide elastic absorption of tensile and compressive forces, thereby reducing load changes during acceleration, maneuvering or braking. In addition, ring elements are used in body mountings and frame connections to minimize vibrations, prevent hard impacts and protect sensitive components from structural damage. Their ring-shaped design enables even load distribution and makes them particularly well-suited for applications involving recurring loads from different directions, as is typically the case in demanding commercial vehicle operations.
Technical details
Rubber-metal ring elements consist of a ring-shaped elastomer body that is firmly bonded to inner and outer metal inserts. This combination ensures that the component can both withstand high forces and provide elastic damping. The rubber component absorbs shocks, vibrations and load spikes, while the metal components ensure the necessary stability, secure fastening and precise force transmission. Technically, ring elements are characterized by high energy absorption, the ability to deform in multiple load directions, and defined spring characteristics.
Characteristics
Rubber and metal ring elements are characterized by particularly uniform force distribution, as their ring-shaped design evenly absorbs loads and thus prevents localized overloading. They offer high energy and shock absorption and respond to dynamic load cycles with controlled, elastic deformation. Thanks to the combination of flexible elastomer and sturdy metal inserts, they provide secure fastening, high dimensional stability and reliable force transmission.
Ring elements can also absorb loads from various directions, making them particularly suitable for applications involving complex motion sequences. Their high fatigue strength ensures long-term operational reliability even under intense continuous vibrations. Furthermore, they are resistant to dirt, moisture and temperature fluctuations, making them ideal for demanding operating conditions in commercial vehicles.
